Lesson 3.2: Image Quality Configuration

Module: 3 – Video Surveillance (VMS & CCTV) Prerequisites: Lesson 3.1 (Camera Hardware) Estimated Time: 45–60 Minutes

1. Learning Objectives

By the end of this lesson, you will be able to:

  • Configure Shutter Speed to prevent “Ghosting” on moving objects (crucial for License Plate Recognition).
  • Manage Wide Dynamic Range (WDR) to fix backlit scenes without introducing artifacts.
  • Balance Frame Rate (FPS) and Keyframe Intervals (GOV) to maximize storage retention.
  • Explain the trade-off between Depth of Field and Low Light performance (Aperture).

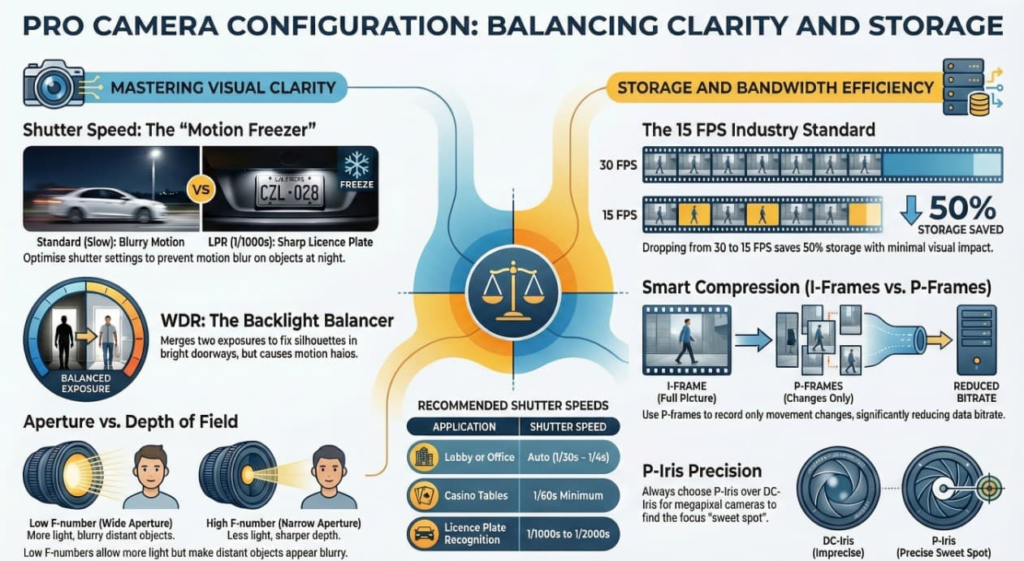

2. Shutter Speed: The “Motion Freezer”

This is the #1 setting ignored by technicians, leading to useless footage.

  • The Concept: Shutter speed controls how long the sensor is “open” to catch light.
    • Slow Shutter (1/30s): The sensor is open longer.
      • Result: Brighter image, but fast-moving objects become blurry streaks (“Ghosting”).
    • Fast Shutter (1/1000s): The sensor snaps quickly.
      • Result: Freezes motion perfectly, but the image is darker (less time to catch light).
  • The Application:
    • Lobby/Office: Leave at default (auto 1/30s – 1/4s).
    • License Plate Recognition (LPR): You MUST force the shutter to 1/1000s or 1/2000s. If you leave an LPR camera on “Auto,” the plate will be a white blur at night.
    • Casino tables/Fast Hands: 1/60s minimum.

3. Wide Dynamic Range (WDR): The “Balancer”

  • The Problem: You point a camera at a glass entry door. The sun is bright outside, but the lobby is dim. The camera adjusts to the sun, making the person walking in look like a black silhouette.
  • The Solution (WDR):
    • The camera takes two photos at once: one with a fast shutter (for the bright window) and one with a slow shutter (for the dark person).
    • It digitally merges them into one balanced image.
  • The Trade-off (The “WDR Ghost”):
    • Because it combines two frames taken milliseconds apart, if the person is running, the two images won’t align perfectly. You get a weird “halo” or blur around them.
    • Rule: Turn WDR OFF for LPR or fast-traffic areas. Turn it ON for lobbies and entrances.

4. Aperture & Iris: The “Pupil”

The Iris controls the hole in the lens (F-Stop).

  • Low F-Number (F1.2): Big hole. Lots of light.
    • Side Effect: Shallow Depth of Field. The person 10ft away is sharp, but the person 20ft away is blurry.
  • High F-Number (F2.0+): Small hole. Less light.
    • Side Effect: Deep Depth of Field. Everything from 5ft to 50ft is in focus.

P-Iris (Precise Iris): Modern high-end cameras use P-Iris. A motor sets the iris to the exact “sweet spot” for clarity, rather than just forcing it wide open. Always choose P-Iris over DC-Iris for megapixel cameras.

5. Frame Rate (FPS) & Bandwidth

  • The Myth: “We need 30 FPS for smooth video.”
  • The Reality: Hollywood movies are shot at 24 FPS.
    • 15 FPS: The Industry Standard. It looks fluid to the human eye and saves 50% storage compared to 30 FPS.
    • 30-60 FPS: Only use for Casinos (counting cards) or License Plates (fast cars).
    • 7-10 FPS: Fine for empty hallways or perimeter fences.

6. Compression: I-Frames vs. P-Frames

To save space, cameras don’t save a full photo 15 times a second. They use compression (H.264/H.265).

  • I-Frame (Intra-frame): A full, complete picture (High data).
  • P-Frame (Predicted frame): Only records what changed since the last frame (Low data).
    • Example: In an empty hallway, the walls don’t move. The P-frame says “Repeat the walls,” saving massive space.
  • GOV (Group of Video) / I-Frame Interval:
    • This setting tells the camera: “Send a full I-Frame every X seconds.”
    • Standard: Every 1 or 2 seconds.
    • Smart Codecs (Zipstream): They dynamically delay the I-Frame when nothing is happening, dropping bitrate to almost zero.
